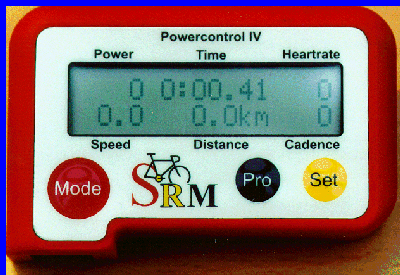

SRM POWERCONTROL
|
Besides power and cadence, the Powercontrol also measures the speed, heartrate
(compatible to Polar not-coded heart rate sender) and the temperature.
The measured data are indicated and at the same time stored. The storage
interval is adjustable between a 1/20 to 60 seconds. The values of one
storage interval are always taken the mean. The storage capacity lasts
for 72 hours of training with a 10 second storage interval. Powercontrol
receives its energy from a rechargable battery that allows 25 hours of
continuous training whithout recharging. Powercontrol has an integrated
serial interface to allow downloading data to an IBM compatible PC. |
|
Shown Data at Powercontrol
Display
|
| |
Position shown data on display
|
| Menu |
Left up
|
Middle up
|
Right up
|
Left down
|
Mid.down
|
Right down
|
| Main |
actual power
|
training time
|
act. heartrate
|
actual speed
|
training distance
|
actual cadence
|
| Second |
date
|
name of user
|
time
|
temperature
|
| Avr |
avr power
|
pedal. time
|
avr heartrate
|
avr speed
|
--AVR--
|
avr cadence
|
| Max |
max power
|
energy
|
max heartrate
|
max speed
|
--MAX--
|
max cadence
|
| Tr.zones 1-5 |
training time in this zone
|
zone range defined by power or heartrate
|
% training time in this zone
|
avr heartrate or power in zones
|
avr cadence in this zone
|
| Last interval |
avr power
|
length in time
|
avr heartrate
|
avr speed
|
distance
|
avr cadence
|
| Sub menu |
battery capacity
|
memory capacity
|
wheel circumference
|
memorizing interval
|
total distance
|
calibration powermeter
|
|
|
|
|
|
|
|
|
